Rake Loading and Weighing Software

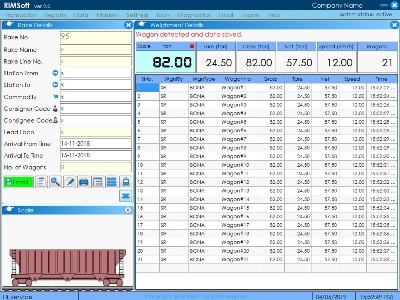

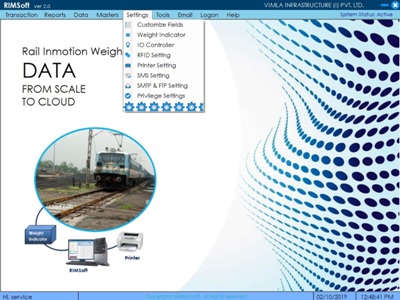

Rake Wagon Loading and Wagon Weighing Software – RIMSoft is an advanced Inmotion weighing software for rail weighbridges in the field of Mining, Logistics, Industrial Plants, Ports and Railways. This software can be used in all type of wagon rail weighbridge, bogie rail weighbridge and axle rail weighbridges. It can request Rake information from Railway FOIS and transfer weighment data to FOIS system.

This system can manage regular weighment of all type of wagons, data storage and printing weighment slip. In addition to weighment, system also generates first, date, shifts, rake no. wise and summary reports. RIMSoft having the features of data managements like Predefine wagons, Merging data, modify transaction of wagon no., Tare Weight, Carrying Capacity, Permissible Carrying Capacity, reprint slip and weighment data upload to MS SQL Server or Oracle DB or MySQL Databases.
Technical Features
• Wagon, Bogie, Axle, Wheel Weighing
• Ladle and Torpedo Weighing
• Measures Wagon / Bogie / Axle Weight, Speed and Gross Weight
• Under load / Overload Detection based on Carrying Capacity and Gross
• Data store and print Report as per RDSO specification
• Weighment Data to Railway FOIS
• Report generation with all date, period, shift and summary report etc.
• Predefine Rake Details
• Merging weighment data
• Modify Weighment data (except Gross Weight)
• Connect to any Weight Indicator using RS232/USB/Ethernet/Modbus TCP
• Real Time data acquisition
• Support with Anti Roll Back system
• Over speed warning using Hooter and PLC
• Over speed lamp using LED and PLC
